New LD-300 Laser Decorator



  • FOR MORE DETAILS


    Call: +971 4 440 5400

    You can also write to us roland@eccdxb.com



Fast, easy-to-use, and safe-to-operate, the DGSHAPE LD-300 laser decorator is a hot foil printing machine that personalizes polycarbonate, acrylic, and leather items with super-stylish metallized foil logos, designs and text.

  • Add reflective graphics in a myriad of textures and colors onto phone covers, leather handbags, packaging, and so much more†
  • Incredibly economic-to-use when compared to hot-foil stamping, it offers laser-precise results
  • Provides a unique opportunity for your kiosk, online shop, or graphics business to create original and exciting custom products

DOWNLOAD BROCHURE

Enquiry

More Size, More Speed, and Now with Leather Personalization

Building on the platform of the revolutionary LD-80, the LD-300 laser decorator can laser imprint at twice-the-speed* in a maximum area of 12 in. (W) x 9.06 in. (D) and on multiple items at once. No longer limited to only personalizing small giftware items, you can now expand your output to include leather items and fulfill customization orders for different customers.

*Based on maximum LD-300 laser imprint speed of 48mm/s (1.89 in/s)

LD-300 Laser Decorator

Create Unique Custom Products in
4 Easy Steps

Everything about the LD-300 is “easy”. It’s easy to maintain with a user-replaceable poly lens, easy to profit with such a low-running cost and inexpensive foils to choose from, and effortlessly easy to operate. In just 4-steps, you can create high-value custom products.

Step 1

Place your objects in the machine.

Step 2

Add your chosen foil.

Step 3

Laser imprint your design using the included software.

Step 4

Your customized products are ready to sell.

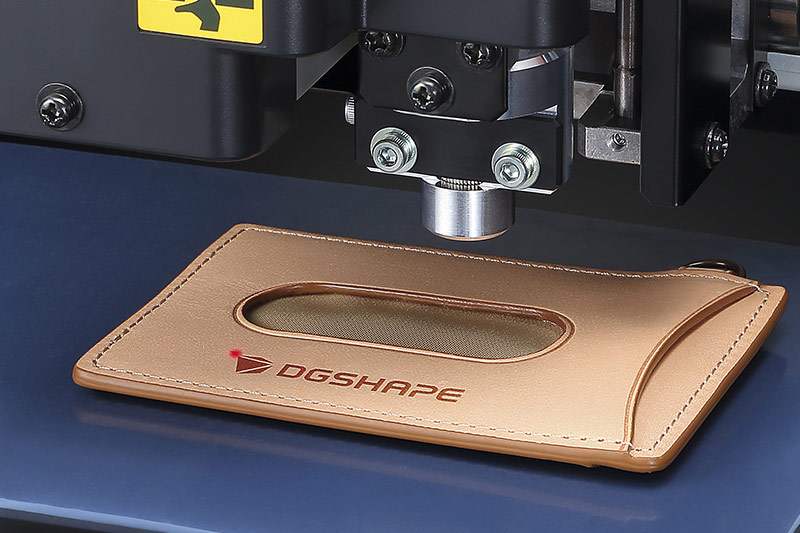

Create Laser Precise Graphics

in Complete Safety

LD-300 uses laser transfer technology to apply heat-activated adhesive foil to acrylic, polycarbonate, polypropylene, polystyrene, leather and ABS. The pinpoint accuracy of laser technology combined with a high-quality transfer foil can create designs as small as a fraction of a millimeter. As a fully-enclosed, “Class 1” standard laser device, the LD-300 can be used in any home, office, or retail environment.

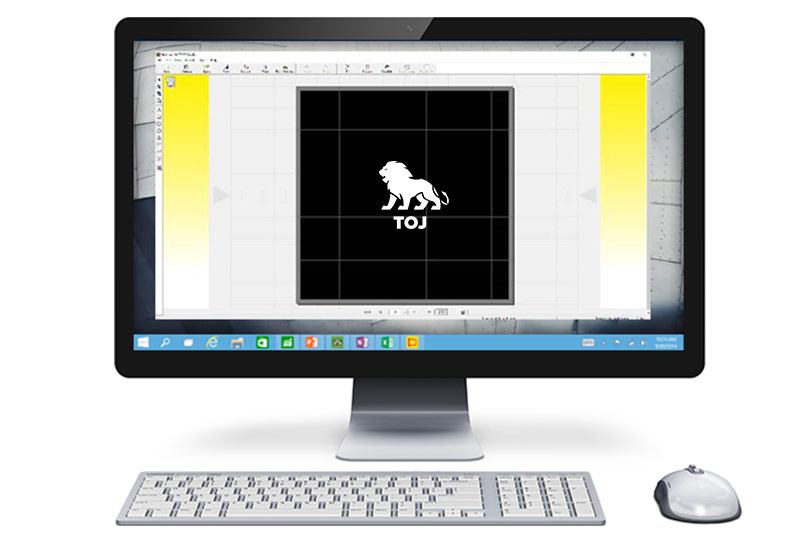

Included Software
for Text and Logos

The LD-300 comes bundled with METAZAStudio design software that was developed to suit users of all abilities. Use any system fonts or vector designs you want, or import existing designs from popular design software packages in AI or EPS formats. Create custom fill patterns for your text and logos, or set up your file for multiple colors using different foils.

Use With a Variety of Metallized Foils
or Without Foil for Leather Pyrographic Effects

The LD-300 can be used with holographic, metallic, matte, gloss and other metallized foils. Achieve amazing graphic finishes with a wide variety of different foils that produce a myriad of unique and brilliant effects. It can also be used without foil on leather for sophisticated pyrographic embellishment.

FOIL COMPATIBILITY CHART

Distinctive Features and Highlights

No Special Electrical Set-Up Required
Works with standard wall sockets – does not need large amounts of heat or pressure.
Laser Pointer for Easy Set-Up
At the touch-of-a-button, a laser pointer reveals the origin point on the media for precise positioning.
Included Vise
An included vise holds your objects perfectly in place and allows for quick set-up.
Serial Data Options for Multiple Customers
Use data files with different names and text to personalize products for different customers at-once.
Fits Your Space and Environment
A compact and clean machine that creates no dust or gas and fits in your office, studio, or home environment.
Air Volume Vector Graphics and Text
Import and edit a wide range of files in the included METAZAStudio software and get detailed text and image results with the LD-300.

Foil Compatibility Chart

LF-HOLO (HOLOGRAPHIC) LF-MET (METALLIC) LF-GLOSS (PIGMENT)
Acrylonitrile Butadiene Styrene (ABS) • • •
Acrylic (ACRYL) • • •
Poly Propylene (PP) • • •
Poly Ethylene (PE) • • •
Poly Styrene (PS) • • •
Polyethylene Terephthalate (PET) • • •
Polyvinyl Chloride (PVC) • • •
Poly Carbonate (PC) •
Styrene Acrylonitrile (SAN) • •

*Successful text and image results depend on the correct combination of foil and media. For best results, test foil transfer prior to final production. Foil Compatibility Chart results are based on product testing in North and South American regions only (excluding Brazil) with products readily available in these regions.
